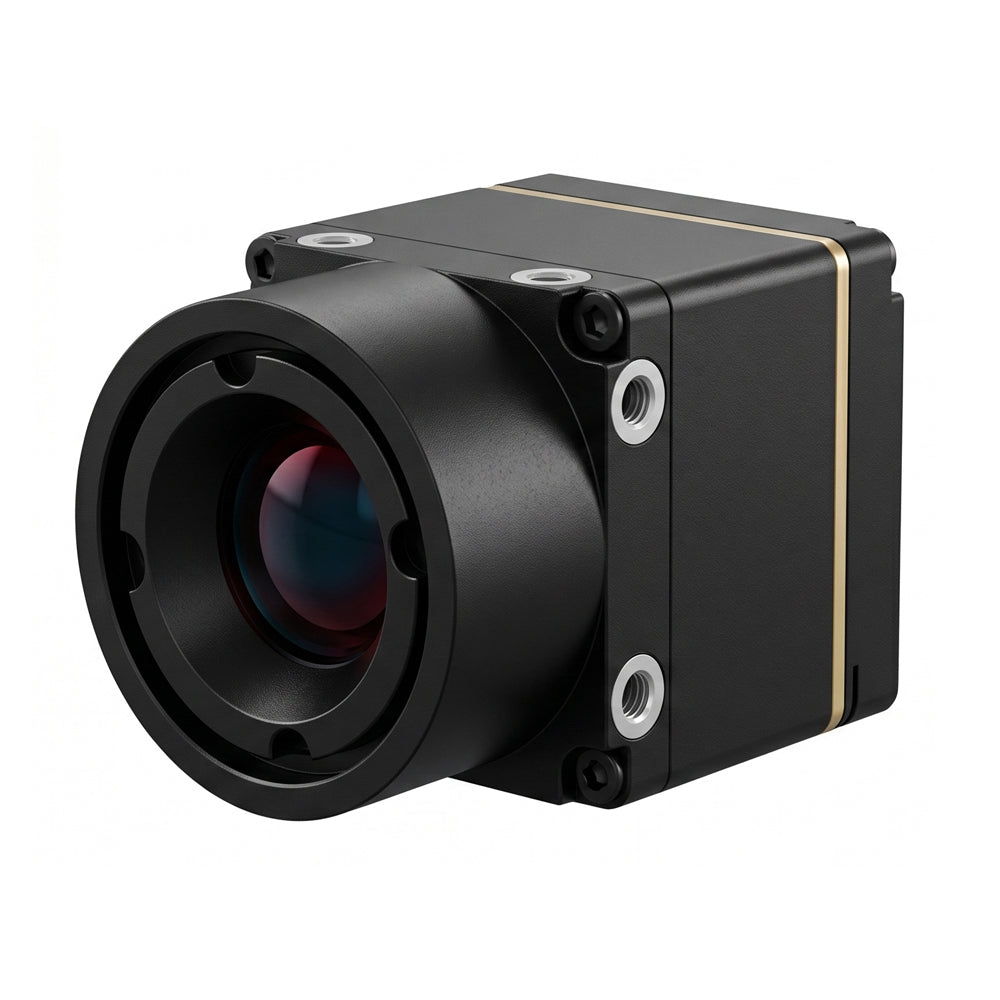

Front view of the DytSpectrumOwl DY-64CA thermal camera core featuring a 9.1mm wide-angle lens

DY-64CA Thermal Core

$796.00
$796.00 $989.00
Skip to product information
Front view of the DytSpectrumOwl DY-64CA thermal camera core featuring a 9.1mm wide-angle lens
  • Front view of the DytSpectrumOwl DY-64CA thermal camera core featuring a 9.1mm wide-angle lens

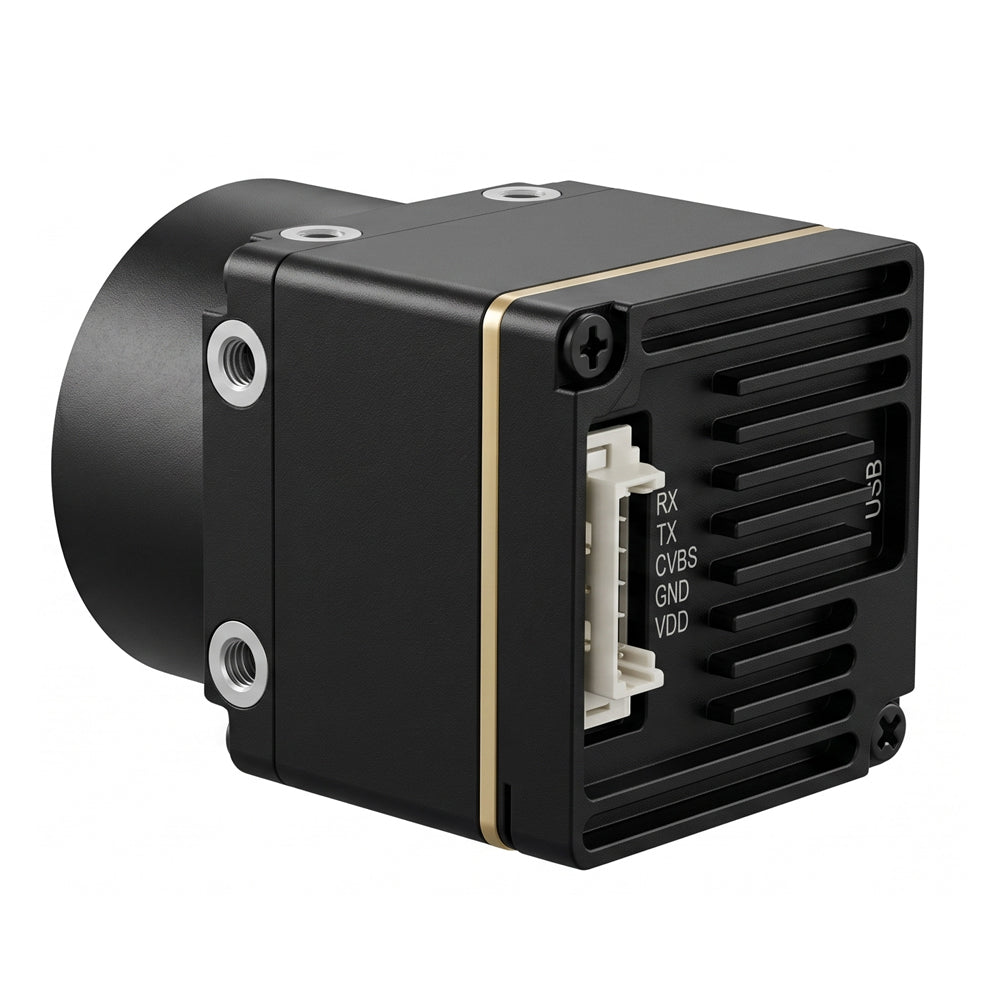

  • Rear interface of the DY-64CA thermal module showing CVBS, USB output, and power connection pins
  • Front view of the DytSpectrumOwl DY-64CA thermal camera core featuring a 9.1mm wide-angle lens
  • Rear interface of the DY-64CA thermal module showing CVBS, USB output, and power connection pins
DY-64CA Thermal Core

DY-64CA Thermal Core

$796.00
$796.00 $989.00

Experience professional-grade thermal vision with the DytSpectrumOwl DY-64CA Infrared Thermal Imaging Camera Module. Engineered around a high-performance 640x512 Vanadium Oxide uncooled focal plane detector, this ultra-compact thermal core utilizes advanced 12μm pixel pitch technology to deliver unparalleled thermal sensitivity and image clarity.

Equipped with a 9.1mm golden focal length lens (F1.0) and a smooth 50Hz frame rate, the DY-64CA captures rich picture details and sharp outlines, making it the perfect all-scenario thermal imaging solution for industrial inspection, security monitoring, drone payloads, and outdoor search and rescue.

Key Features

  • True 640x512 High-Definition Resolution: Captures minute temperature differences and accurately identifies tiny targets with crisp, sharp outlines.
  • Ultra-Smooth 50Hz Frame Rate & Low Latency: With a delay of less than 20ms, it ensures real-time, lag-free thermal video streaming, crucial for dynamic monitoring and vehicle integration.
  • Advanced 12μm Process: High sensitivity packed into a highly compact and lightweight movement (only 23.1g), ensuring seamless integration into portable devices, UAVs, and custom enclosures.
  • 9.1mm Wide-Angle Golden Lens: Offers a wide Field of View (FOV) of 45.8° x 37.3°. It perfectly balances close-range wide-area scanning with long-distance precise observation.
  • Dual Video Output (CVBS & USB UVC): Highly versatile interface supporting both traditional CVBS analog video (PAL) and modern USB UVC output, making it plug-and-play compatible with Windows, Android, and various imaging systems.
  • Ultra-Low Power Consumption (<0.7W): Powered by a custom ASIC chip, this module operates with extreme efficiency, significantly extending the battery life of your integrated host device.
  • Wide Voltage Support (5-24V): Highly adaptable power input range ensures stable operation across different industrial power supplies.

Applications

  • UAV / Drone Thermal Payloads
  • Industrial Temperature Inspection
  • Security and Perimeter Surveillance
  • Outdoor Search and Rescue
  • Automotive Night Vision Integration
  • Handheld Thermal Imager OEM Development

Note: This module is intended for integration by engineers, developers, and OEM manufacturers. Please refer to the pin definition for correct wiring (RX, TX, CVBS, GND, VDD, USB).
