DP-38 High-Resolution Thermal Imaging Camera (384x288, Up to 1200°C) - 1

DP38 Professional Thermal Camera


DP38 Professional Thermal Camera

High-Resolution Thermal Imager for Industrial & Electrical Inspection
★★★★★
5.0 (2 Reviews)
$890.00
$890.00 $1,099.00
Focal Length
2-Year Warranty
30-Day Guarantee
Technical Support
  • High-resolution 384 × 288 thermal imaging
  • Visible and thermal image fusion with five imaging modes
  • TIisoView image enhancement with DDE
  • Thermal sensitivity below 40mK at 25°C
  • Temperature measurement range from -20°C to 1200°C
  • Removable 5000mAh battery with approximately 5 hours of operation
BENCHMARK SPECIFICATIONS

Core Performance Pillars

384 × 288

IR Resolution

High-resolution thermal matrix capturing 110,592 temperature data points.

< 40 mK

Thermal Sensitivity

High NETD sensitivity for detecting subtle temperature variations.

1200°C

Temperature Range

Covers low-to-high temperature inspection needs with a -20°C to 1200°C measurement range.

Manual

Focus Control

Rotate the manual-focus lens to refine image clarity for the current inspection distance.

BENTO FEATURE HIGHLIGHTS

Engineering Innovations & Key Advantages

See Small Thermal Anomalies Clearly
MICRO-DETAIL INSPECTION
Small Anomaly Visibility

See Small Thermal Anomalies Clearly

High-density thermal imaging helps inspect compact components, terminals, and small heat patterns with clearer visual confidence.

EARLY ANOMALY DETECTION
Subtle Heat Differences
WIDE-CONDITION WORKFLOW
Cold-to-High-Heat Inspection
THERMAL + VISIBLE CONTEXT
Fusion-Assisted Inspection

Match thermal patterns with visible equipment context during inspection.

ON-SCREEN DIAGNOSTICS
Measure While You Inspect
FIELD OPERATION
Replaceable Field Power
LIVE REVIEW WORKFLOW
Share the Inspection View
SITE USABILITY
Aim, Illuminate, Verify
ANALYSIS WORKFLOW
From Capture to Report

Review captures, analyze thermal data, and prepare reports in PC software.

MULTI-SCOPE APPLICATIONS

Multi-Scope Industrial Applications

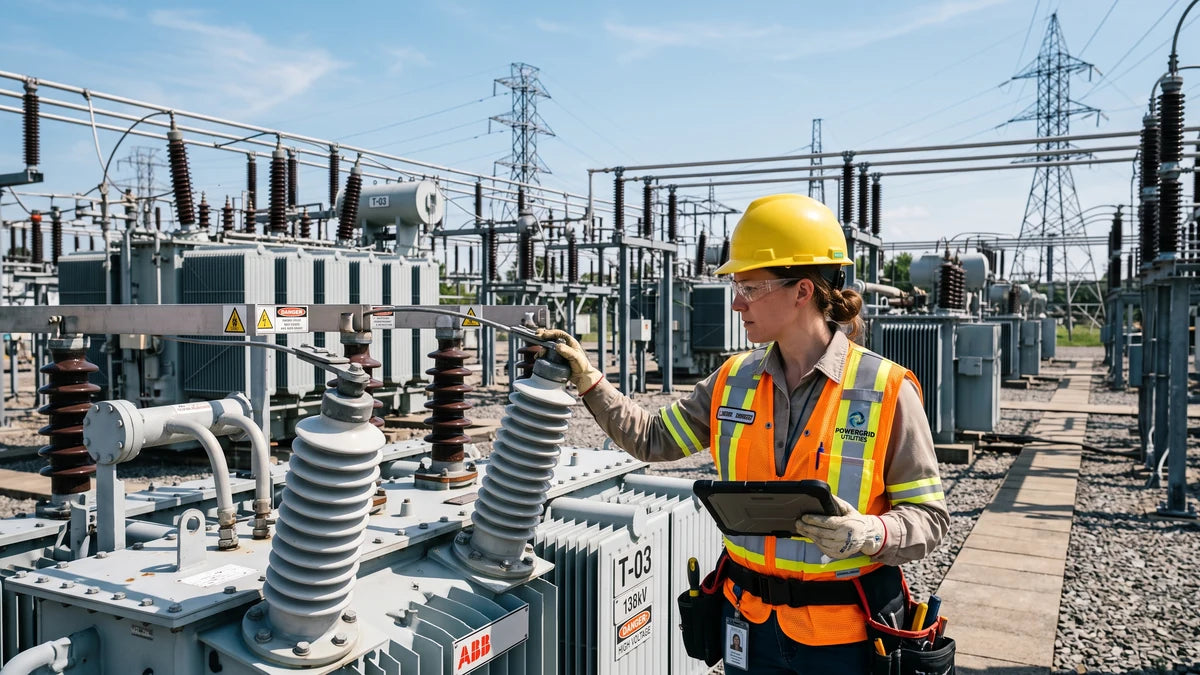

Electric Power Industry

Electric Power Industry

Thermal condition inspection of power transmission lines and power equipment, with fault and defect diagnosis.

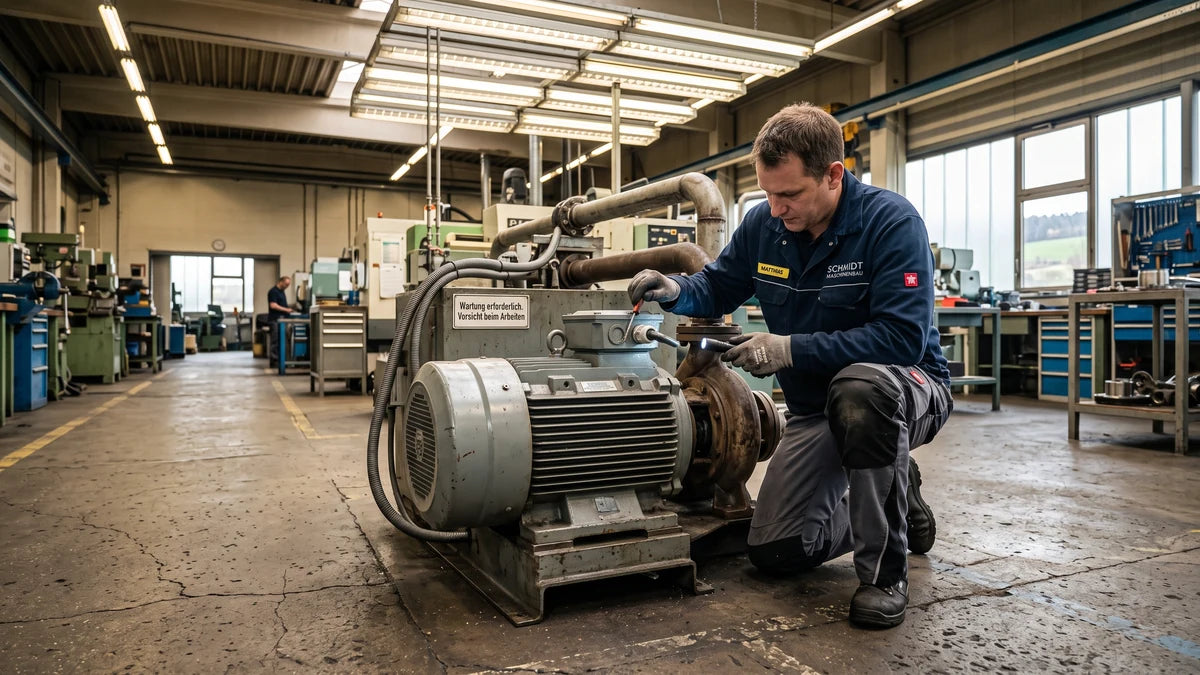

Electrical & Mechanical

Electrical & Mechanical

Troubleshooting overheating in electrical and mechanical equipment.

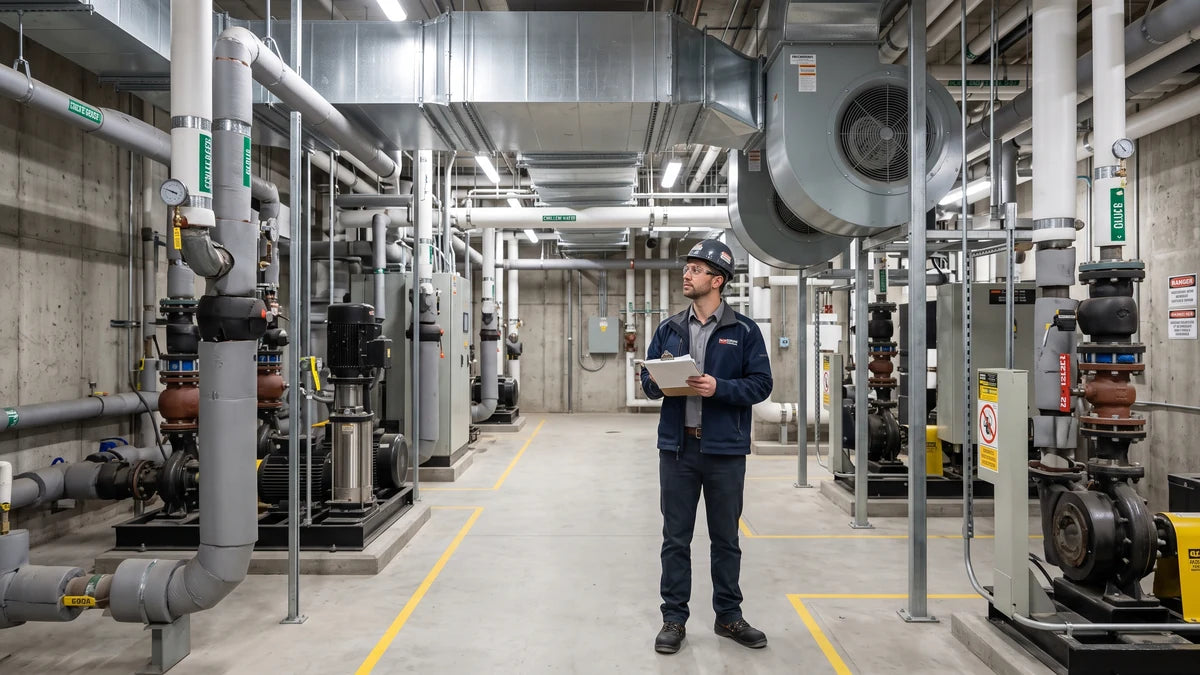

Construction & HVAC

Construction & HVAC

Detection of moisture, air leakage, and insulation defects in construction inspection scenarios.

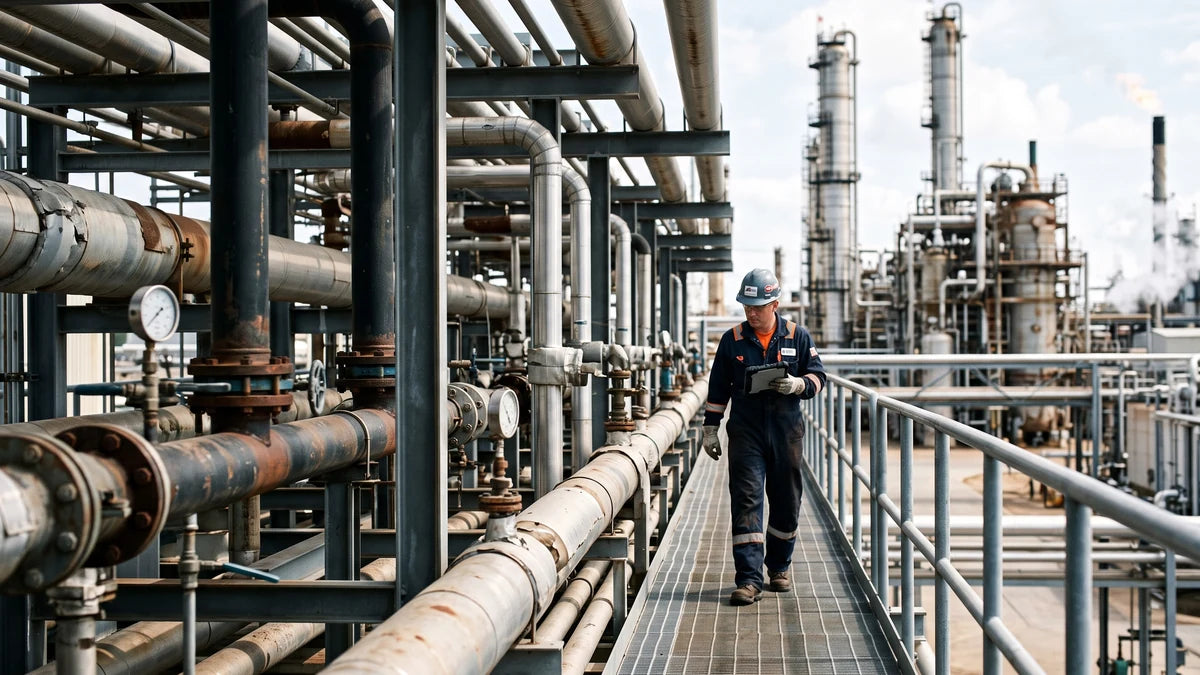

Petrochemical Inspection

Petrochemical Inspection

Oil pipeline condition monitoring, material interface detection, and insulation structure heat leak inspection.

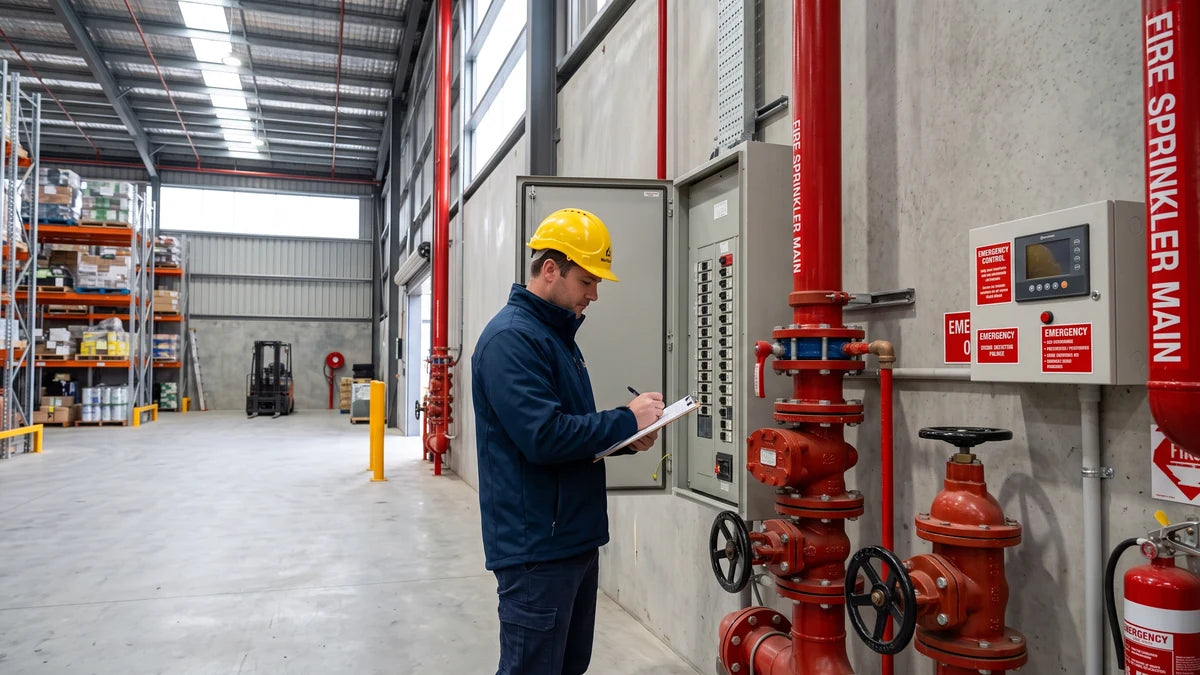

Firefighting & Safety

Firefighting & Safety

Forest fire prevention, locating potential fire sources, spontaneous-combustion prevention for special materials, and electrical fire safety inspection.

R&D & Maintenance

R&D & Maintenance

Supports research and development, automation, and preventive maintenance applications.

SYSTEM ARCHITECTURE

Technical Capabilities

Multispectral Fusion
Imaging

Multispectral Fusion

  • Dual Visible & Thermal Sensors
  • Multiple Palette Renderings
  • TIisoView Detail Enhancement
Hardware Features
Hardware

Hardware Features

  • 4.3-inch touch screen with button and touchscreen operation
  • 40m laser ranging and LED fill light support
  • Removable 5000mAh battery with approximately 5 hours of operation
PC & Mobile Workflow
Software Ready

PC & Mobile Workflow

  • PC-Based 3D Distribution Software
  • Mobile App Real-time Transmission
  • Built-in 32GB Storage
TECHNICAL PARAMETERS

Technical Specifications

Specification Parameter Value / Performance Standard

Optical

  • IR Resolution: 384 × 288
  • Spectral Range: 8–14 μm
  • Frame Rate: 25Hz
  • Thermal Sensitivity (NETD): ＜40mK @ 25℃
  • Field of View (FOV): 17.46° × 13.14°
  • Lens: 15mm (Standard), 19mm (Optional), 25mm (Optional)

Measurement

  • Temperature Measurement Range: -20°C to 1200°C
  • Measurement Accuracy: ±2°C or ±2% of reading, whichever is greater
  • Measurement Modes: Support max, min, center point of entire screen, point, line, and frame measurement
  • Measurement Correction: Target distance, ambient temperature, relative humidity, reflected temperature

Display & Imaging

  • Visible Light Camera Resolution: 8 Mega pixels
  • Screen Size: 4.3-inch touch screen
  • Image Mode: Thermal imaging, visible light, edge fusion, overlay fusion, picture-in-picture
  • Image Optimization: TIisoView image enhancement set

System & Connectivity

  • Connectivity: Wi-Fi (Real-time App streaming), Bluetooth, USB Type-C, HDMI
  • Storage & Software: Built-in 32G EMMC (expandable to 256G SD), PC 3D Analysis Software & Mobile App Included

Hardware

  • Laser Ranging: 40m
  • LED Fill Light: Support

Power

  • Battery & Operation Time: Removable 5000mAh lithium battery (Approx. 5 hours continuous operation)

Environmental

  • Working Temperature: -10°C to +60°C
STANDARD PACKAGE CONTENTS

What's in the Box

1x

DP38 Professional Thermal Imager

1x

Heavy-Duty Toolbox & Storage Bag (with Shoulder Strap)

1x

USB Type-C Cable & HDMI Cable

1x

USB Flash Drive & Lanyard

1x

Cleaning Cloth & User Manual

FREQUENTLY ASKED QUESTIONS

Technical Product FAQ

What level of thermal detail does DP38 provide?

DP38 uses a 384 × 288 infrared detector with thermal sensitivity below 40mK @ 25°C, helping reveal subtle temperature differences during thermal inspection.

What temperature range can DP38 measure?

DP38 measures from -20°C to 1200°C, with accuracy specified as ±2°C or ±2% of reading, whichever is greater.

Does DP38 support manual focus?

Yes. DP38 uses an adjustable focus lens, so you can rotate the lens to refine image clarity for the current inspection distance.

Can DP38 combine thermal and visible-light images?

Yes. DP38 includes an 8MP visible-light camera and supports Thermal, Visible Light, Edge Fusion, Overlay Fusion, and Picture-in-Picture image modes.

Can I analyze and transfer DP38 inspection images?

Yes. DP38 supports USB Type-C file transfer, PC analysis software, and Wi-Fi mobile app real-time image transmission. This supports a workflow from capture to review and analysis.

2-Year Factory Warranty

Full coverage for IR sensor precision, mainboard electronics & optical hardware components.

30-Day Money-Back Guarantee

Try risk-free in your industrial environment. Hassle-free returns if not completely satisfied.

Worldwide Express Shipping

Direct factory dispatch with real-time tracking via DHL, FedEx & UPS air express.

Lifetime Technical Support

Direct engineering support, firmware updates, and PC software calibration assistance.


  • 5 stars: 2 (100%)
  • 4 stars: 0 (0%)
  • 3 stars: 0 (0%)
  • 2 stars: 0 (0%)
  • 1 star: 0 (0%)
B
Brian Mueller
High-Resolution 384×288 Thermal Imaging That Punches Way Above Its Price Class

I'll start by saying that I've not used a professional grade version of one of these before. I have no reference point. However, I do have a couple of friends that have used them and indicated that this seemed to live up to what they had seen in much more expensive units.

I was like a kid in a candy shop finding all the cold spots in our house and making notes of where to check insulation, which doors needed weather strips replaced, which recepticles on outside walls needed a seal added. Also tried it with some circuit boards (My computer and a raspberry pi) and I was able to see which traces had even the slightest difference in temperature.

Speaking of that. I pointed it at my load center (breaker box) and it showed the slightest difference in temperature. I quickly identified that my washer was running (it was) and the server closet from the subtle differences in heat even though I could not tell a difference with my bare hand.

Really nice find and I can use this for so much!

J
Jspec1
Great output and features

This thermal imaging camera works well and is easy to use. Camera provides exceptional resolution for its price point. Rugged construction, and comes with a nice case. I don’t have any other camera to compare it, but it does seem to be pretty accurate.
